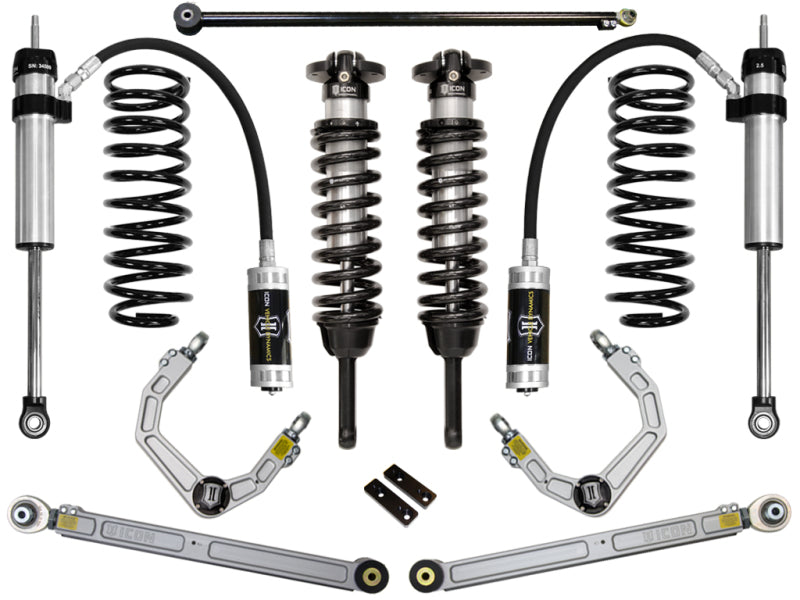

The Stage 4 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks with internal reservoirs paired with billet aluminum Delta Joint upper control arms. This combination allows for extended wheel travel and on-vehicle adjustment of the upper control arms to dial in front end alignment. The coilovers are also height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2” lift rear coil springs paired with 2.5 Aluminum Series remote reservoir rear shocks utilizing vehicle-specific valving offer increased performance compared to the 2.0 Aluminum Series shocks. ICON's billet aluminum lower links are much stronger than the OE units, improve articulation, and can be adjusted while installed on the vehicle for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. An adjustable rear track bar is also included for KDSS compatibility that also helps correct rear end alignment. The ICON Vehicle Dynamics 2010-UP Lexus GX460 Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
- Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
- Billet rear lower links offer increased strength, improved geometry, and on-vehicle pinion angle adjustment
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 2.5 Aluminum Series rear remote reservoir shocks with 7/8" shafts
- Bolt-on system means no cutting or welding necessary for install
- Included adjustable rear track bar ensures KDSS compatibility
- 6061 aircraft grade aluminum CNC machined components
- Increased wheel travel and ride quality over stock
- Adjustable coilovers provide 0-3.5" of lift height
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010-2023 | Lexus | GX460 | Base |
| 2023 | Lexus | GX460 | Black Line Edition |
| 2014-2022 | Lexus | GX460 | Luxury |
| 2010-2023 | Lexus | GX460 | Premium |
| 2023 | Toyota | 4Runner | 40th Anniversary Edition |
| 2010-2024 | Toyota | 4Runner | Limited |
| 2020-2021 | Toyota | 4Runner | Nightshade |
| 2010-2024 | Toyota | 4Runner | SR5 |
| 2018-2024 | Toyota | 4Runner | SR5 Premium |
| 2010-2016,2021-2022 | Toyota | 4Runner | Trail |
| 2017-2024 | Toyota | 4Runner | TRD Off-Road |
| 2018-2024 | Toyota | 4Runner | TRD Off-Road Premium |
| 2015-2024 | Toyota | 4Runner | TRD Pro |
| 2022-2024 | Toyota | 4Runner | TRD Sport |
| 2020-2021 | Toyota | 4Runner | Venture |
| 2010-2014 | Toyota | FJ Cruiser | Base |
